Microsoft Advertising
This guide helps you to connect fraud0 with your Microsoft Advertising account. There are a total of 4 steps you need to take to protect your advertising budget in Microsoft Advertising.
Follow these steps:
Implement Microsoft Advertising Tag (Step 1/4)
Create New Audience (Step 2/4)
Exclude fraud0 Audience (Step 3/4)
Manually Block IP Addresses (Step 4/4)
🚫 This functionality is not available for trial customers
Implement Microsoft Advertising Tag (Step 1/4)
Step 1: Implement Microsoft Advertising Tag in Google Tag Manager
This step shows you how to implement a Fraud0 Microsoft Advertising Custom Event Tag via Google Tag Manager. This Tag is needed to create a new Microsoft Ads audience for the audience exclusion.
Go to your Google Tag Manager Workspace
Make sure that the UET Config tag (page view tag) is already in place (if not, you need to create it)

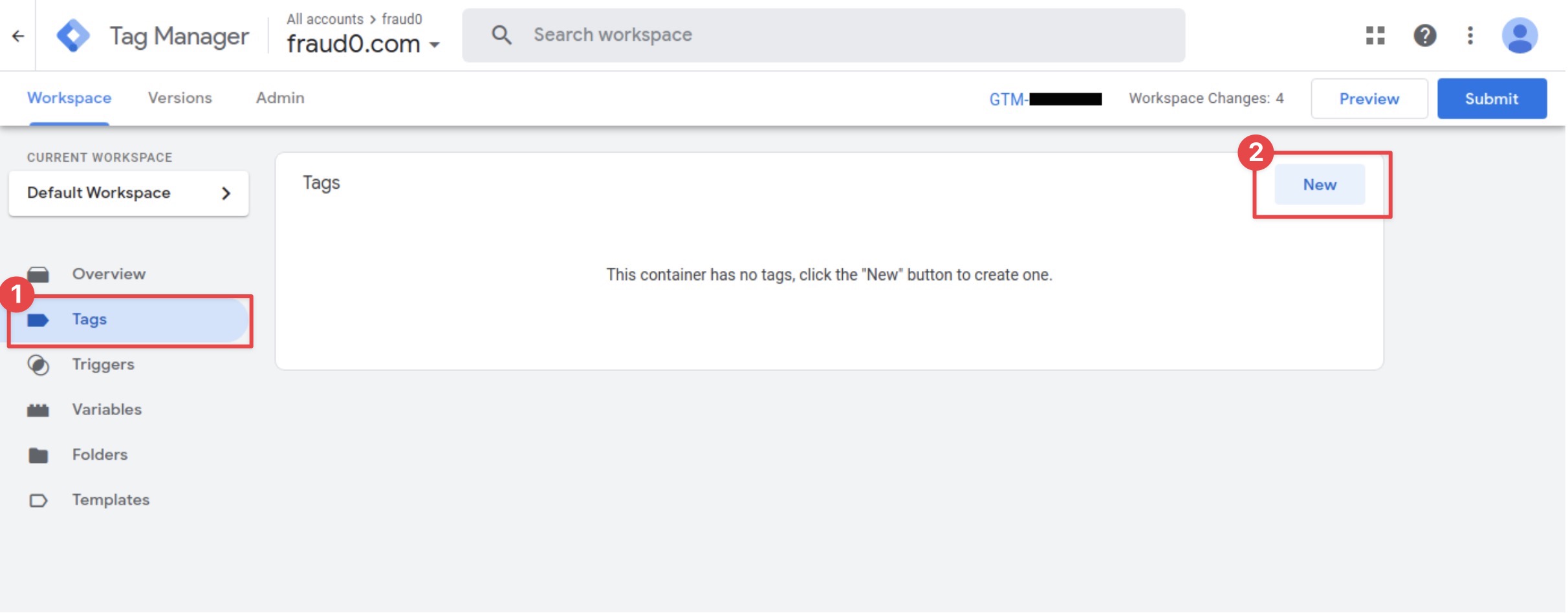

To create and define the fraud0 custom event tag navigate to Tags (1) and click New (2) in the top-right corner
.jpg?inst-v=b7747562-89a3-4ad0-a719-f2fbdada9359)
Within the Tag Configuration section search for “Microsoft” and select the Microsoft Advertising Universal Event Tracking tag. The tag template will open next.
Give your tag a name (F0 Bing Tag) and select under “Track type” ”Custom conversion” and type in the following values into the other fields:
| 1 | Event action | F0Event-Bing |
| 2 | Event category | Fraud0Bot-Traffic |
| 3 | Event label | detection |
| 4 | Event value | 1 |
In the Triggering section you need to assign the F0 Bot Traffic Trigger you have created before
Finally it should look like this or similar:
Learn more:
Save the configuration
Create New Audience (Step 2/4)
Step 2: Create New Audience in Microsoft Ads
Follow these steps to create a new Microsoft Ads audience for the audience exclusion.
Log in to your Microsoft Ads account and click on Tools in the left side menu bar
Then select Audiences below Advertising, targeting, and tracking
In the audience library click on the Create button
Name your Audience (F0_Negative Audience (1))
Select Remarkting list (2) in the Type section and click Next (3)
In the Audience details
Select your Microsoft Advertising Tag below Tag name (here: f0_intern_MS_UET)
Choose Custom events in the drop down menu below Whom to add to your audience
And add the values to Category (equals Fraud0BotTraffic), Action (equals F0Event_Bing), Label (detection), and Value (equals to 1)
Extend the Membership duration to 90 days
Save the Audience
Exclude fraud0 Audience (Step 3/4)
Step 3: Exclude fraud0 Audience from your Microsoft Campaigns
Follow these steps to exclude the fraud0 Audience, you created in the previous step.
The fastest way to exclude the fraud0 audiences from your campaigns is to Bulk Edit all of your campaigns and then assign the created audience.
Click on Campaigns in the main menu on the left side and click on Ad Groups (one can only create ad group level associations for audience campaigns) in the 2nd level menu that opens after the first click. Then tick the checkbox to select all campaigns
Click on Edit and Associate with audiences
Click on Add exclusion
Then select Remarketing lists in the drop down menu and select or search for the F0_Negative Audience list you created in the previous step
Click on the + sign to add it to the list of selected audiences.
Click on Save
You did it!
From now on, fake and low-quality traffic will be excluded from your Microsoft Ads campaigns and your ad budget is protected.
Manually Block IP Addresses (Step 4/4)
Step 4: Block Specific IP Addresses from Your Microsoft Ads
If you're running campaigns and want to ensure that specific IP addresses cannot see your ads, follow these simple steps to manually block them from your account.
Contact your Support Team Assistance:
The IP addresses to be entered can be provided to you by your support team on request. Send us an email →
Important Notes:
Campaign Level Exclusions:
IP exclusions must be added at the campaign level, not at the ad group level.IP Address Limit:
You can exclude up to 100 IP addresses or IP ranges per campaign.IPv4 Only:
You can only exclude IPv4 addresses. These addresses must include all four octets, each with values ranging from 0 to 255. The last octet can be a wildcard (*) to cover a range. For example,127.0.0.*would exclude all IP addresses between127.0.0.0and127.0.0.255
Navigate to Campaigns:
From the navigation menu on the left, select Campaigns and choose the checkbox next to the campaign that you want to edit (or select all campaigns).
Select the Campaign:
Click on Edit and select Other changes.
Open IP Address Exclusions:
From the Campaign settings dropdown menu, select IP address exclusions.Enter IP Addresses:
In the text box, enter the IP addresses that you wish to block. You can enter one IP address per line. Alternatively, you can enter a range of addresses by using a wildcard character (*).Apply the Changes:
After entering the IP addresses, click Apply to save the changes.
Next Steps
In the upcoming steps, you will need to create Negative Audience lists for your other channels.
